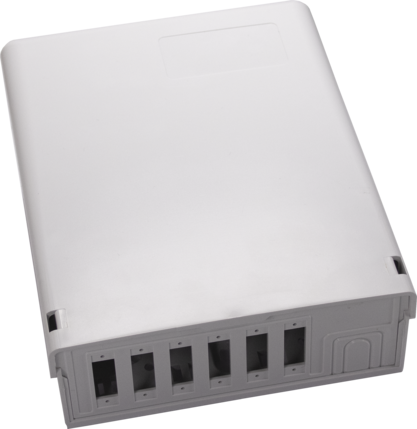

Easy indoor distribution box 24F

Product code 5053109 Copy
Count 1 Copy
Sales unit Pcs Copy
ETIM-Class EC002067 Copy
  • Product specifications

    The Fiber Optic Box MTeH EASY is designed as a simple box for indoor installation. It supports especially FTTH networks. It can be used for storage of a pre-connectorized cable or blown cable reserves, which can be spliced when connecting the customer. It can also be used as a distribution box in small buildings or as a floor box.

    • Easy installation
    • Wide portfolio of accessories - see datasheet below
    • Flat base with mounting holes
    • Space for cable reserve before connecting customer
    • Possibility to use the box for splicing or patching
    • Two positions for adaptor plate
    • Capacity up to 6x SC duplex, or 6x LC quad
    • Gradiated rubber gland for cable  Ø 3-10mm (on each side)
    • Breakable outputs on back side (connection through the wall directly to customer)
    • Possibility to use loop-through cable
    • Splice holder (max. capacity 24 splices, for fibres G.652d a G.657a,b)
    • Possibility to place PLC splitter



    Coverage Degree IP 20 to EN 60529
    Self-Extinguishing Degree V2 to UL94
    Impact protection degree IK 5 to EN 50102
    Color White RAL 9003
    Dimensions 205x157x60
    Weight 0,350 kg
    Material – distribution box ABS - Halogen free, flame retardant (V2)
    Environment Indoor
    Number of splices 1-12 splices, 13-24 splices
    Number of connectors 1-12 connectors, 13-24 connectors
    Connector type SC, LC
  • Measurements
    Length 60 mm Copy
    Height 205 mm Copy
    Width 157 mm Copy
    Weight 400 g Copy
  • Documents
    5053109-FDV.pdf
  • Technical Specifications - Termination/Distribution Boxes
    Environment Indoor Copy
    Number of splices 24 Copy
    Number of connectors 24 Copy
    Connector Type SC, LC Copy
    Cable/duct diameters 3-10mm Copy
    Splice Holder Included Yes Copy
    IP Codes ip20 Copy
    Impact protection degree ik05 Copy
    Colour White RAL 9003 Copy
    Material ABS Copy
    Halogen Free Yes Copy
    Fire Resistance v2 to ul94 Copy
