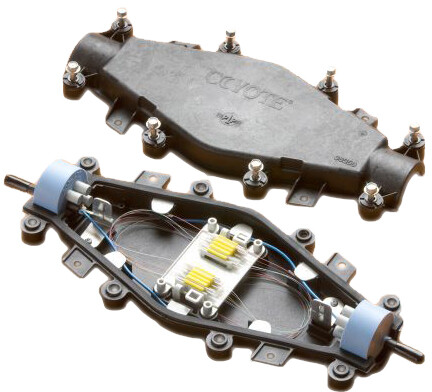

LCC 24F closure, lightgrip Incl. two 7 hole grommet

Product code 5062828 Copy
Count 1 Copy
Sales unit Pcs Copy
ETIM-Class EC002598 Copy
  • Product specifications

    The Coyote LCC (Low Count Closure) is a compact closure that utililizes the COYOTE silicone grommet system and LITE-GRIP splice platform, is designed making this rugged closure the ideal economical solution for new drop cable installations and critical repair situations. Offers a cost-effective solution for quick restoration of damaged or cut fiber service drops Utilizes the LITE-GRIP splice block system which permits single fusion, mass fusion, mechanical, PLC splitters, or a combination of all within one closure.

    • Splice Capacity (Maximum) – Single Fusion, Mass Fusion: 24, 72
    • Cable Ports: 2
    • Cable Diameters: 2.4 - 25.4 mm and flat drop
    • Configuration: In-Line or Butt
    • Application: Direct Bury, Below Grade, Pole/Wall, Aerial
    • Ingress Protection: In accordance to Telcordia® GR-771-CORE, Buried, Underground, IP-68
    • Size: 356 x 165 x 64 mm
    • 2 silicone grommets for cables 1 x 11-15mm + 6 x 3-6mm allows for re-entry and re-use. Other grommet dimensions are available
    • LCC halves are constructed of a UV-stabilized material
    • Flexible grommet sealing technology supports a wide range of flat and round cable profiles
    • Flat shape allows for mounting in small areas
    •  Flame-retardant and ribbon kits available
  • Measurements
    Length 360 mm Copy
    Height 150 mm Copy
    Width 170 mm Copy
    Weight 1,255 g Copy
  • Documents
  • Technical Specifications - Termination/Distribution Boxes
    Environment Outdoor Copy
    Number of splices 24 Copy
    Number of Entry/cable ports 2 Copy
    Cable/duct diameters 3-40mm Copy
    Splice Holder Included Yes Copy
    IP Codes IP68 Copy
    Colour Black Copy
    Material polypropylene fiberglass Copy
    UV Proof Yes Copy
  • Technical Specifications - Grommets
    Cable Range 1x11-15 + 6x3-6 mm Copy
    Blind Plugs Included Yes Copy
    No Of Holes 7 Copy
    Material slicone Copy
    Colour Blue Copy
    For Closure lcc Copy
    Figure Round Copy
