CTB PTO ONE Optical Outlet 2xSCS/LCD

Product code 5053110 Copy
Sales unit Pcs Copy
ETIM-Class EC001409 Copy
  • Product specifications

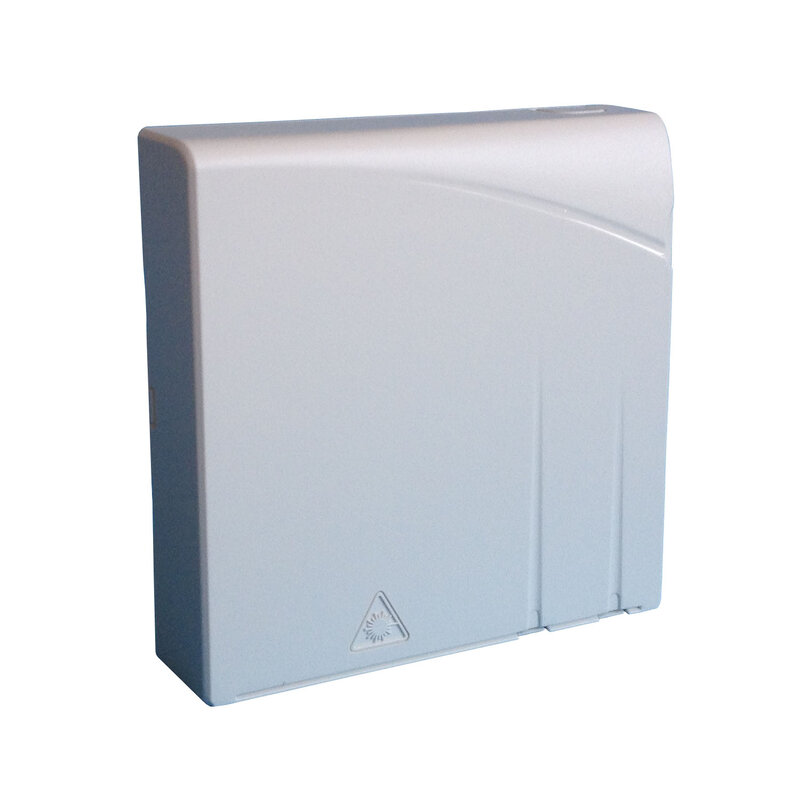

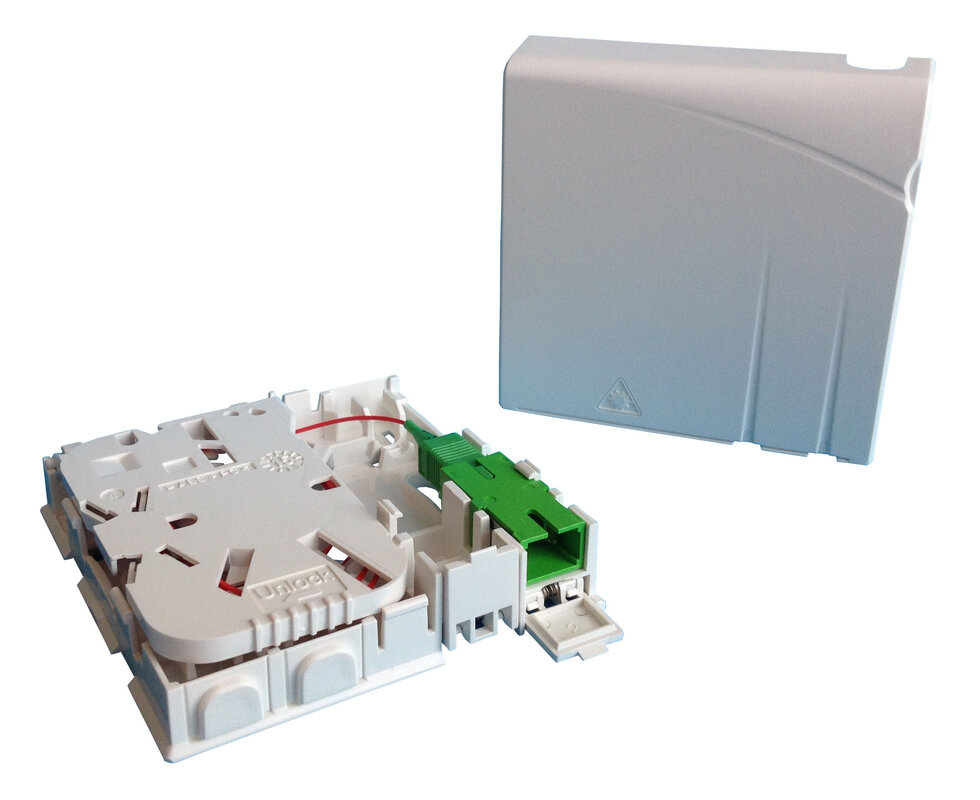

    The PTO One has been developed to fulfill all the requirements of FTTH and FTTO networks. Its compact (80 x 80 x 20mm) and neat design allows to fit into any type of installation environment. It also enables the storage of the fibre at two independent levels, bare and sheathed fibre. This offers a robust mechanical protection of the inner splices and makes the product easy to use. The PTO ONE can adapt to all homes and offices configurations. With integrated protective flaps into the outlet.

    • Dimensions (L x D x H) : 80 x 80 x 20mm
    • Capacity: 1FO or 2FO (900µm)
    • Cable entries: 2 at the left bottom, 1 at the top right and 1 at the rear side
    • Bend radius: ≥ 15mm
    • Ingress protection: IP40
    • Shock resistance: IK05
    • Mounting plane: spacing 60mm
    • Material: ABS-PC
    • Color: RAL 9010
    • UV resistant
  • Measurements
    Length 80 mm Copy
    Height 20 mm Copy
    Width 80 mm Copy
    Weight 50 g Copy
  • Documents
  • Technical Specifications - Termination/Distribution Boxes
    Environment Indoor Copy
    Number of splices 2 Copy
    Number of connectors 2 Copy
    Connector Type SC, SC/UPC, SC/APC, LC, LC/UPC, LC/APC Copy
    Cable/duct diameters max 5mm Copy
    Splice trays included 1 Copy
    Max Fibre Count per tray 2 Copy
    Splice Holder Included Yes Copy
    IP Codes IP40 Copy
    Impact protection degree IK06 Copy
    Colour White RAL 9010 Copy
    Material ABS-PC Copy
    Generic_Halogen_Free Yes Copy
    Fire Resistance UL 94-V0 Copy
    Weight 50 g Copy
