ORM5 distribution lockable box IP54

Product code 5060074 Copy
Count 1 Copy
Sales unit Pcs Copy
ETIM-Class EC002067 Copy
  • Product specifications

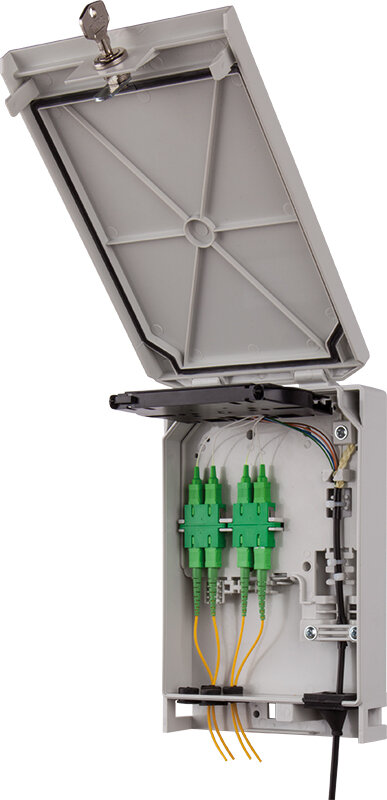

    Lockable wall mount optical distribution box is designated for indoor/outdoorwall installation at the customer premises. Box is suitable mainly in FTTH networkto terminate optical fibres on the internal/outdoor walls of the buildings mainly insuburban areas with lower household density (family houses, low household countresidential buildings or offices). Additionally, the box can play the role of the floor distribution box in multidwelling units.

    • Simple wall installation
    • Easy access due to hinged removable cover
    • Lockable cover (optional)
    • Gradual cable gland located in the lower wall for the cables with the outside diameters between 3 and 14 mm
    • Gradual cable gland located in the bottom for the cables with the outside diameters
    • between 3 and 10 mm (for the wall through installations)
    • Pre-fabricated holes in the bottom for the wall through patchcord installation
    • 4 prefabricted holes for dividable bushing capable to seal up to 2 patchcords or
    • heavy duty subscriber cables
    • Can accommodate up to 4× SC or 4× E2000, eventually 8× LC connectors and
    • pigtails (UPC or APC polishing)
    • Splice cassette supporting up to 12 heat-shrink or crimp fusion splice protective
    • sleeves or mechanical splices (up to 4 pieces).
    • Ready to accommodate Gas block for the microtubes with various outside diameters (5, 7, 10, 12 and 14 mm) at the input of the box



    Coverage Degree IP 54 according to EN 60529
    Impact protection degree IK 10 to EN 50102
    Color Light gray RAL 7035
    Material PC+ABS CYCOLOY C2950-96235
    Dimensions 235 × 156 × 45 mm
    Weight 450 g
    Bushings – right part 1× Gradual bushing 3–14 mm for incoming cable
    Bushings – left part 4× Dividable rubber bushing 2× 1–3 mm or 4× Gradual bushing 3–14 mm
    Bushings – bottom (wall through) Gradual bushing 3–10 mm for incoming cable
    Solar radiation (UV) EN 60068-2-5
    Change of temperature -45 °C/+70 °C according to EN 60068-2-14
    Environment Outdoor
    Number of splices 1-12 splices
    Number of connectors 1-12 connectors
    Connector type SC, LC
  • Measurements
    Length 235 mm Copy
    Height 45 mm Copy
    Width 156 mm Copy
    Weight 600 g Copy
  • Documents
  • Technical Specifications - Termination/Distribution Boxes
    Environment Outdoor Copy
    Number of splices 12 Copy
    Number of connectors 8 Copy
    Connector Type LC/UPC QUAD, SC/APC DUPLEX, SC/UPC DUPLEX, LC/APC QUAD Copy
    Number of Entry/cable ports 7 Copy
    Cable/duct diameters 3-16mm Copy
    Splice trays included 1 Copy
    Max Fibre Count per tray 12 Copy
    Splice Holder Included Yes Copy
    Lockable Yes Copy
    IP Codes IP54 Copy
    Impact protection degree IK10 Copy
    Colour Light Gray RAL 7035 Copy
    Material ABS-PC Copy
    Generic_Halogen_Free Yes Copy
    Fire Resistance UL94-V0 Copy
    UV Proof Yes Copy
    Temperature ranges for Operation -45 °C/+70 °C Copy
