4F Droptic cable 4.0mm G657A2 9/125 TB White LSZH Dca 250 mtr/box

Product code 4985574 Copy
Sales unit Meter Copy
ETIM-Class EC000034 Copy

Business unit

Cables for indoor installation
Fibre Optic Cables
  • Product specifications

    4F G657A2 cable typically used for indoor installation applications by pulling. Cable parameters such as cable flexibility, diameter and higher safety levels for fire and dangerous substances makes it optimized for safe and effective indoor installation.

  • Measurements
    Length 1,000 mm Copy
    Height 4 mm Copy
    Width 4 mm Copy
    Weight 17 g Copy
  • Documents
    4985574-FDV.pdf

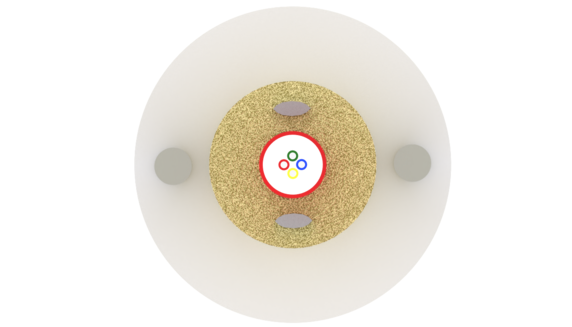

  • Physical Characteristics
    Fibre Count 4 Copy
    Cable Construction micro module Copy
    Fibre Type itu-t g.657 a2 Copy
    Fibres per Tube 4 Copy
    Tube Size 0.9 mm Copy
    Central Strength Member frp are embedded in the cable sheath Copy
    No of Tubes 1 Copy
    Tube Colour Sequence s12 Copy
    Outer Sheath Material lszh (low smoke zero halogen) Copy
    Colour of Cable Sheath White Copy
    Nominal Sheath Thickness 1 mm Copy
    No of Ripcords Below Outer Sheath 1 Copy
    Cable Diameter 4 mm Copy
    Cable Diameter Tolerance ± 0.15 mm Copy
    Nominal Cable Weight 17.2 kg/km Copy
  • Mechanical & Environmental Characteristics
    Halogen Free Yes Copy
    UV Proof Yes Copy
    Metal free Yes Copy
    CPR Yes Copy
    CPR Classification dca-s2, d1, a1 Copy
    Tensile Strength (N) IEC-60794-1-21-E1 400 N Copy
    Crush Resistance - IEC- 60794-1-21-E3 150 N/10cm Copy
    Impact Strength (Nm) IEC-60794-1-21-E4 3 nm Copy
    Torsion IEC-60794-1-21-E7 20 cycles ; l = 1m ; load = 25 n ; ± 180° ; δα ≤ 0.1 db Copy
    Min. Bend Radius (During Installation) IEC-60794-1-21-E11 20 mm Copy
    Min. Bend Radius (After Installation) IEC-60794-1-21-E11 15 mm Copy
    Water Penetration TestIEC-60794-1-22-F5 compliant Copy
    Temperature Performance Installation IEC-60794-1-22-F1 +5°c to +45°c Copy
    Temperature Performance Operation IEC-60794-1-22-F1 -30°c to +70°c Copy
    Temperature Performance Storage IEC-60794-1-22-F1 -30°c to +70°c Copy
    Cable Length In Package 250 m Copy
  • Other variants

    Under construction, please contact your sales representative
